Features

Specifications

Warranty: 1 Year

After-sale Service: Online Technical Support, Free Spare Parts

Project Solution Capability: Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation

Application: Delivery

Model Number: RC-158

Use: Carport, Hotel, Sentry Box,Guard House, Shop, Warehouse, Workshop,Plant, Restaurant

Product Type: Container Houses

Design Style: Traditional

Standard Size: 10/20/40/45/48ft

Usage: Transport, Refrigeration

Tare Weight: 2.83KGS

ROOF: PU 80mm 40~45kg/mÂ³

Wall: PU 63.5mm 45~50kg/mÂ³

Floor: PU 76/135mm 50~55kg/mÂ³

Temperature Range: -25 â„ƒ To 25 â„ƒ

Basic Infomation

Payment & Shipping Terms

Product Description

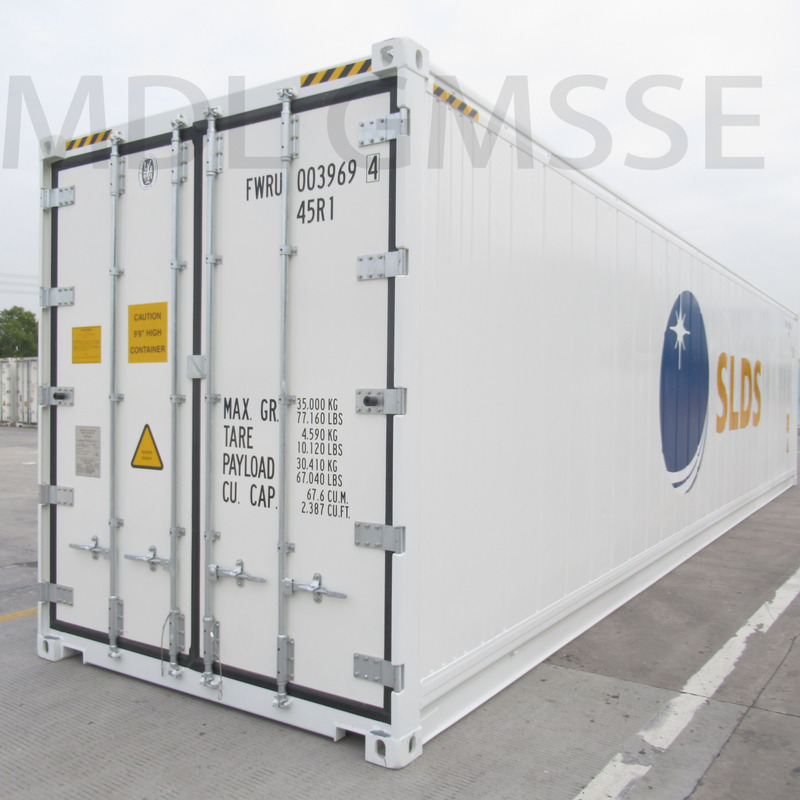

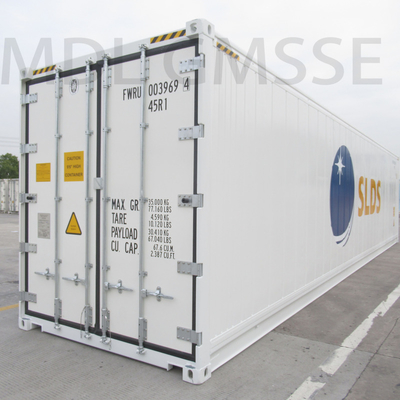

Reefer container

General

The container is designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs (excluding hung‐chilled meat) and general cargo by land (on road or rail) and by sea (above or below deck) throughout the world with external temperature ranging from ‐40°C to +80°C without effect on the container strength and water‐tightness. A mechanical refrigeration unit of a “one piece picture frame type" will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at ‐18°C in ambient temperature up to+38°C.

Standards, Regulations and Rules

Containers shall comply with following in their editions: 1) ISO/TC‐104 668 Dimensions and ratings (1995 edition) 1161
Specification of corner fittings (1990 edition) 1496/2 Specification and testing, thermal containers (1996 edition) 6346 Coding, identification and marking (the third edition 1995) 3874 Freight Containers, Handling and Securing (1997 edition) 2)TIR requirements and certificate. 3) Timber components treatment and certificates. There will be no exposed timber in the construction. 4) CSC requirement and certificates. In compliance with “International Convention for Safe Containers”. 5)Classification Society: All containers will be certified by . 6) UIC registration. 1.3 Handling The container will be constructed to be capable of being handled without any permanent deformation, which will render it unsuitable for use or any other abnormality during the following conditions: 1) Lifting, full or empty, at the top corner fittings vertically by means of spreaders fitted with hooks, shackles or twist locks. 2) Lifting, full or empty, at the bottom corner fittings using slings with appropriate terminal fittings at slings angle of forty‐five (45) degrees to horizontal. 3) Lifting, full or empty, at two fork pockets by fork lift truck.

Transportation

The container shall be constructed to be suitable for transportation for the following modes without any permanent deformation which will render the container unsuitable to use or any abnormality.
Marine - In the ship cell guides: Eight (8) high stacked (based on 32,500kg), on the deck: 4high stacked and secured by vertical diagonal lashings.
Road ‐On flat bed or skeleton chassis, secured by twistlocks or equivalent ones at the bottom corner fittings.
Rail ‐ On flat cars of special container cars secured by twistlocks or equivalent ones at the bottom corner fittings.

Dimensions and Ratings

External dimension Length 6,058 mm (0,‐6) Width 2,438 mm (0,‐5) Height 2,591 mm (0,‐5)
Internal dimension (Nominal) Length 5,456 mm (0,‐12) Width 2,290 mm (0,‐10) Height 2,276 mm (0,‐10) Cargo access height 2,224 mm (0,‐10)

Door Opening (Nominal) Width 2,294 mm (0,‐5) Height ‐ at sill 2,264 mm (0,‐5)
Forklift Pocket Width 360 mm Height 115 mm Center distance 2050 mm
Inside Cubic Capacity (Nominal) 28.4 m3 (1,005 cu.ft.) Total 15 Page 5
Rating Max. Gross Weight 30,480 kg 67,200 lb. Tare weight (excluding Ref. Unit) 2,450 kg±2% 5,400 lb. For TK Magnum Plus Ref. Unit: as per actual weight of Ref. Unit Tare weight (Including Ref. Unit 380KG) 2,830 kg±2% 6,240 lb. Payload 27,650 kg 60,960 lb.

Insulation

Polyurethane foam with Cyclopentane (non‐CFC) blowing agent.
Heat leakage value
Umax = 23.5 kcal/deg.c.hr at 20°C(293k) mean wall temp. (including reefer unit)
Air leakage
Qmax = 3 cu.m/hrmeasured at 25.4±1mm WPG inside.

Item	Thickness	Core Density
Roof	80 mm	40‐45 kg/m3
Side Walls	63.5 mm	45‐50 kg/m3
Door Panels	74 mm	50‐55 kg/m3
Floor	76/135 mm	50‐55 kg/m3
Corner		45 kg/m3

Technical Parameters

Specification

Cooling unitCarrier；Working temperature: -25 ℃ to 25 ℃,can be adjusted.

Cooling unit

Thermo King；Working temperature: -25 ℃ to 25 ℃,can be adjusted.

Guarantee.

The guarantee period will commence the date after the certification has been issued by the classification society.
Paint guarantee: The application of paint will be guaranteed against corrosion and paint failure for a period of five (5) years.
The guarantee is for faults affecting more than 10% of the painted surfaces and will assure partial or total re-painting of the
container. Corrosion caused by acids,alkalis or other chemicals,damage by abrasion,impact or accident are excluded.

Decal guarantee: The decals are warranted for seven (7) years to withstand the environmental conditions as “General” mentioned for
color,stability & adhesion.

Other guarantee: This will be guaranteed against fault in construction,poor workmanship and material for a period of three (3)
years. Any damages caused by mis-handing,mis-securing,mis-loading,impact and any accidents relating from bad practices are
excluded.

Reefer unit: The reefer unit warranted for one (1) year by reefer unit company.

Design data: 20GP
1. External dimensions: Length 6058mm(0,-6),Width 2438mm(0,-5),Height 2591mm(0,-5). 2. Internal dimensions: Length 5450mm(0,-7),
Width 2292mm(0,-5),Height 2275mm(0,-5). 3. Door openings(Nominal): Width 2288mm(0,-5),Height 2251mm(0,-5).

Packing & Delivery

Company Profile

MDL GMSSE Co., Ltd. is located in Panyu district,Guangzhou,China,which is specialized in developing and manufacturing all sorts of modular houses since established.It has cultivated a group of high-quality professional technicians and on-site installation team,providing all-dimensional services for customers with enterprising and pragmatic attitude.From project conception, design,manufacture, construction to installation, we will do the best of our ability to provide the most scientific,reasonable and effective solution for customers. In 2016,GMSSE container factories increased into 28 ones,and they are located in every corner of China, such as Guangzhou /Foshan /Anhui Shanghai/Hangzhou/Nanjing/Fuzhou ect. The annual production capacity can be more than 12,000 units,which is the top one in the field of modular housing. We are the most advanced manufacturing facilities of the container house,our self-developed products include flat pack container house,detachable container house,folding container house,economic shipping container house and modified shipping container house . GMSSE is committed to provide first-class quality and efficient pre-sale and after-sale services, which has taken good reputations from our customers around the world, such as Kenya,Ethiopia,Nigeria,South Africa,Somalia, Morocco, Germany,Kyrgyzstan, United Arab Emirates,Saudi Arabia, Maldives,Vietnam,Philippines,Malaysia and Peru,Paupa New Guinea etc. GMSSE,let everyone's house be full of love !

FAQ

1. who are we?
We are based in Guangdong, China, start from 2014,sell to Southeast Asia(34.00%),Africa(18.00%),Oceania(8.00%),Domestic
Market(8.00%),North America(6.00%),Eastern Asia(5.00%),Mid East(4.00%),South Asia(4.00%),South America(3.00%),Eastern
Europe(3.00%),Western Europe(2.00%),Central America(2.00%),Southern Europe(2.00%),Northern Europe(00.00%). There are total about
51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Flat pack container house,LEGO container house,Butterfly container house,Prefab house,Steel Structure

4. why should you buy from us not from other suppliers?
In 2016, Moneybox's container factories increased into 28 ones,, and they are located in every corner of China, such as
Guangzhou/Foshan/Anhui/Shanghai/Hangzhou/Nanjing/Fuzhou ect. The annual production capacity can be more than 120,000 units.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese
