Home /Products/Electric Water Chiller/Zillion Air-Cooled Water Chillers with Stainless Insulated Water Tank and Anti-Freeze Thermostat 15HP

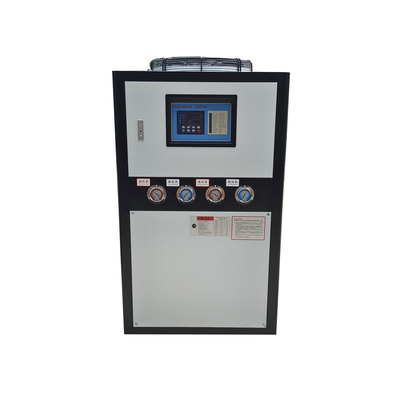

Zillion Air-Cooled Water Chillers with Stainless Insulated Water Tank and Anti-Freeze Thermostat 15HP

1 Piece
MOQ
$2,780.00(1 - 4 Pieces) $2,750.00(5 - 9 Pieces) $2,700.00(>=10 Pieces)
Price
Zillion Air-Cooled Water Chillers with Stainless Insulated Water Tank and Anti-Freeze Thermostat 15HP
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: Peru, India, Mexico, Thailand, Chile, Ukraine, Kyrgyzstan, Uzbekistan, Malaysia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Compressor, Water Pump, Condenser
Condition: Brand New
Type: Air-cooled
Voltage: 380V/220V/415V
Dimension(L*W*H): 1250*680*1400mm
Weight: 750 KG
Warranty: 1 Year
Power: 44600
Working Temperature Range: Cooling Water Range:3~35℃
Key Selling Points: Long Service Life
After-sales Service Provided: Online Support
Cooling Capacity: 44.6kw
Compressor Brand: Daikin/ Panasonnic/Copeland/Danfoss
Refrigerant: R22/R134a/R407c/R410a
Evaporator Type: Water Cooled Fin Type
Product Name: Industrial Screw Type Water-cooled Chiller
Safety Protector: Over Heat,Over Current,Time Delay,High/low Pressure, Etc.
Cooling Environment Temperature: ≤45℃
Application: Industrial Refrigeration/Injection Molding Machine
Noise Level: Low
Basic Infomation
Payment & Shipping Terms
Packaging Details: Fumigated Wooden Case/ Fumigated Wooden Shelf
Supply Ability: 10 Piece/Pieces per Month
Product Description
Product Paramenters
Zillion Industry Air-Cooled Chiller Specifiactions
Model
Cooling capacity(KW)
Fan Volume(m³/h)
Chilled Water Flow(L/min)
Tank Volume(L)
ZL-FL1
3
2350
20
36
ZL-FL2
7.2
2350
40
36
ZL-FL3
9
3216
60
46
ZL-FL5
15
6570
100
65
ZL-FL10
30
9800
200
156
ZL-FL15
45
17000
300
235
ZL-FL20
60
26640
400
313
ZL-FL30
90
34000
600
365
ZL-FL40
120
40000
900
443
ZL-FL50
150
49000
1000
443
NOTICE
1. The cooling capacity is based on: chilled water inlet and outlet temperature 12°C/7°C, cooling inlet and outlet water
temperature 30°C/35°C
2. Working range: chilled water temperature range: 5°C to 35°C; chilled water inlet and outlet temperature difference: 3°C to 8°C.
Use in an environment where the condensing temperature is not higher than 35℃
3. Unit conversion: 1kw cooling capacity=860kcal/hr 1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1 Metric horsepower (HP)=0.735KW
The company product design specifications,function,perfirmance parameters and shape may change,without prior notice,
Products Description
Zillion Air-Cooled Water Chiller Unique Feature
1, Single,double or four compressors combination unit available,high efficiency.
2, Auto alarm for overload and accidental failure.
3, Using electrical control security design to ensure the safety of your personnels.
4, The unit adopts high-strength integral welded frame with compact structure and small floor area.
5, Refrigerant can be R22, R407C, R404A, R134a, R410A, etc.
6, The protection function of the unit is complete, and it is equipped with reverse phase loss, high and low pressure, thermal
overload, low liquid level, antifreeze protection, etc. as standard.

Water Cooled Chiller

The difference between water-cooled chillers and
air-cooled chillers lies in the way the unit itself needs to dissipate heat. Water-cooled chillers use external cooling towers to dissipate heat, while air-cooled chillers use finned condensers to dissipate heat.

Air Cooled Chiller

The air-cooled chiller is an independent integrated circulating refrigeration unit. It only needs to be connected to the power supply and the water pipe to operate, and is easy to move. However, its selection requires high environmental requirements. First, consider the heat dissipation and ventilation of the unit.
Product Disdplay
Details Images
FAN
Pure Copper Tube
Pressure Gauge
Microcomputer LCD Controller
①Display the cold water outlet and set temperature;

②Easy to operate, water temperature can be precisely controlled
Famous Band Compressors
Using famous brand DAIKIN / PANASONIC compressor

Lower noise

Less vibration,

High efficient and energy saving.
Chint Electric
①Selected German Bayer materials

②Reliable and durable quality of switch sockets

③Leading technology and high-end design effectively protect electrical appliances
V Type Finned condensers
①High efficient fin type condenser and silent refrigeration fan.

②no need to equip cooling water, easy to install.

③Corrosion resistance, oxidation resistance, easy to clean
Application
Company Profile
Dongguan Zillion Refrigeration MachineryCo., Ltd.
Was established in 2009 .It is a professional manufacturer of industrial chillers, plastic crusher, mold temperature controllers, cooling towers, mixers, and dryers.

Have a complete and scientific quality management system. The integrity, strength and product quality of Dongguan Zillion Refrigeration MachineryCo., Ltd. have been recognized by the industry.
