Flake Ice Plant Solution

1 Piece
MOQ
$100,000.00 - $110,000.00
Price

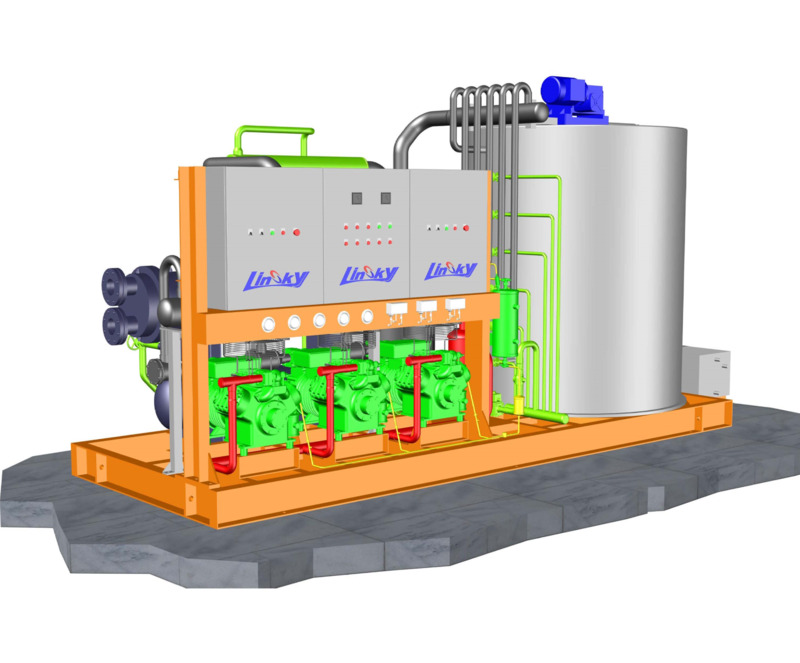

Flake Ice Plant Solution
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining, Fishery
Condition: New
Ice Shape: Tube Ice
Voltage: 380V/50HZ/3P
Power: 210kw
Dimension(L*W*H): 3056mm*2390mm*3577mm
Weight: 10Ton
Warranty: 1 Year
Key Selling Points: Long Service Life
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Mexico
Showroom Location: Mexico
Certification: Ce
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Capacity: 60Ton/day
Product Name: Flake Ice Plant Solution
Cooling Way: Water-cooled
Compressor: Bitzer
Refrigerant: R404a
Daily Capacity: 60Ton/day
Material: Stainless Steel 304
Power Supply: 380v/3p/50hz
Control System: PLC+Push Button
Expansion Valve: Denmark Brand Danfoss
Ice Thickness: 1.5~2.2mm
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: For Flake Ice Plant Solution: 1.Containerized design no need packing. 2.Machine installed completely and strictly tested in our factory before shipping. 3.Cutomer only need prepare power and water for running the machine. 4.All required components for i
Supply Ability: 1 Piece/Pieces per Month
Product Description
Ice plant system Description
Flake Ice Plant Solution
Flake ice plant handles all activities including the production, storage, transportation, wholesale and retail of ice flake. Many applications are in need of flake ice such as in chemical industry, mining industry, nuclear power plant, concrete mix station,supermarket etc.
Flake ice plant solution
The advantages of flake ice plant:
 * Automatic operation with other associated equipment could realize automatic ice storing, delivering and packaging etc functions;
 * SUS304 evaporator complies with food sanitary requirement;
  * Thin piece ice, no need of crushing;
 * Continuous ice making process and ice can be get in 2 min after plug in;
 * Ice flake can be put into mass production reaching a capacity to thousands of tons per day.
* Fast return on investment like that 1~2 years can pay for itself.
Target customers of flake ice plant
* Ice in supermarket/grocery market:
Flake ice is similar to snow shape, mainly used for seafood preservation in supermarket;
* Ice in chemical reaction cooling:
As much chemical material will produce exothermic chemical reaction in their mixing process,to prevent temperature runaway would happen, chemical plant usually put ice flake or other ice into the reactor.
* Ice in concrete cooling:
Cement, sand and gravel reaches high temperature under sun exposure, which will produce a large amount of chemical reaction heat in concrete mixing process. The control of concrete mixing temperature is essential for concrete quality.
* Ice in mine cooling:
Every 100 meters down the mine, the temperature increases by 2℃; when land surface temperature is 30℃, the temperature of the mine at 1000 meters below can reach to 50℃. To alleviate underground drain problem, ice flake is applied in quantities to cool down the underground working environment;
* Ice in man-made snow scene:
Flake ice is thin, crisp, with milky white color very similar to snow. After crushed, flake ice is laid fat on the ground by using ice conveying system and thus will gradually form an artificial skiing ground; or by spraying in the air and stimulate the snow falling scene
* Ice in fishing vessels:
Fishing vessels usually go out for fishing after charging full ice at dock. Seafood must be covered with ice immediately after catching to ensure its freshness.
Factors when you considering a flake ice plant
* Consider the matching issues to the ice making equipment, try to locate ice machine near reactor, mixer etc.;
* Flake ice plant needs relative large capacitance. Equipped with capacitance of 3.5KVA per tonnage, and it is suggested to choose the location with time-of-use electricity price;
* Flake ice can be delivered by multiple kinds of ice conveyors such as air, screw, crawler and more, choose a suitable one will increase system reliability;
* For long-term storage, it is suggested to use ice storage with crushing device to avoid ice lump, for example rake type
automatic ice storage, screw type automatic ice storage and crawler type automatic ice storage;
* Location try not to approach residential area cause compressor, cooling tower and ice hoisting device could probably cause noise pollution.
Solutions to a typical flake ice plant
A: Flake ice machine
A1: Cooling tower
A2: Air-cooled condenser
A3: Evaporative condenser
B: Common ice storage
C: Ice compactor
D: Rake type automatic ice storage
E1: Blowing ice conveyor
E2: Screw ice conveyor
E3: Crawler ice conveyor
Flake ice machine A can adopt three cooling methods, respectively are cooling tower system A1, air-cooled condenser A2,evaporative-cooled condenser A3.
Common ice storage B is usually installed under flake ice machine A. The ice flake produced by ice machine falls off into ice storage B from the bottom of flake ice machine evaporator. This plan fit for small capacity flake ice plant.
Rake type automatic ice storage D is installed under flake ice machine A. The ice flake produced by ice machine falls off into ice storage D from the bottom of flake ice machine evaporator. The ice layer can be automatically paved smoothly by the rake meanwhile the height of rake will be adjusted automatically according to the actual ice level, finally automatically conveys ice to the ice outlet etc. The outlet to the rake type automatic ice storage D could connect to blowing ice conveyor E1, screw ice conveyor E2,or crawler ice conveyor E3 and send ice to needed place.
Flake ice can be directly put into ice compactor C to compress into various sizes of ice block.

Linsky could tailor made flake ice plant solutions and investment feasibility proposal according to clients land, capacity and local weather conditions.
Linsky Ice Machine Factory Introduction
Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
FAQ
If you need whole ice plant exact quote, please reply us following questions:
1.How many ton of flake ice do you need per 24hours? We have 20Ton, 30Ton up to 100Ton.
2.How many ton ice storage do you need?
3.Do you need water chiller? how many ton per hour? What is the water inlet temperature and outlet temperature?
4.How many kg of weighing hopper do you need, 100kg, 200kg, 250kg, 300kg up to 1000kg?
5.How many meter of screw delivery system do you need? We have 5m up to 20m.
6.Do you need steel structure, ladder and rails or not?
7.Please provide the batching plant CAD drawing so that we can design the ice plant location, steel support height, screw delivery length and obliquity accurately.
8.Refrigerant, R22 or R404A?
9.Power supply, 380V 50HZ 3P, 380V 60HZ 3P, or others?
10.what is the water temperature and ambient temperature?
11.what your water inlet temperature?and what out temperature do you need?After this containerized water chiller plant can turn a 46 °C cooling water temperature to 1 °C.
